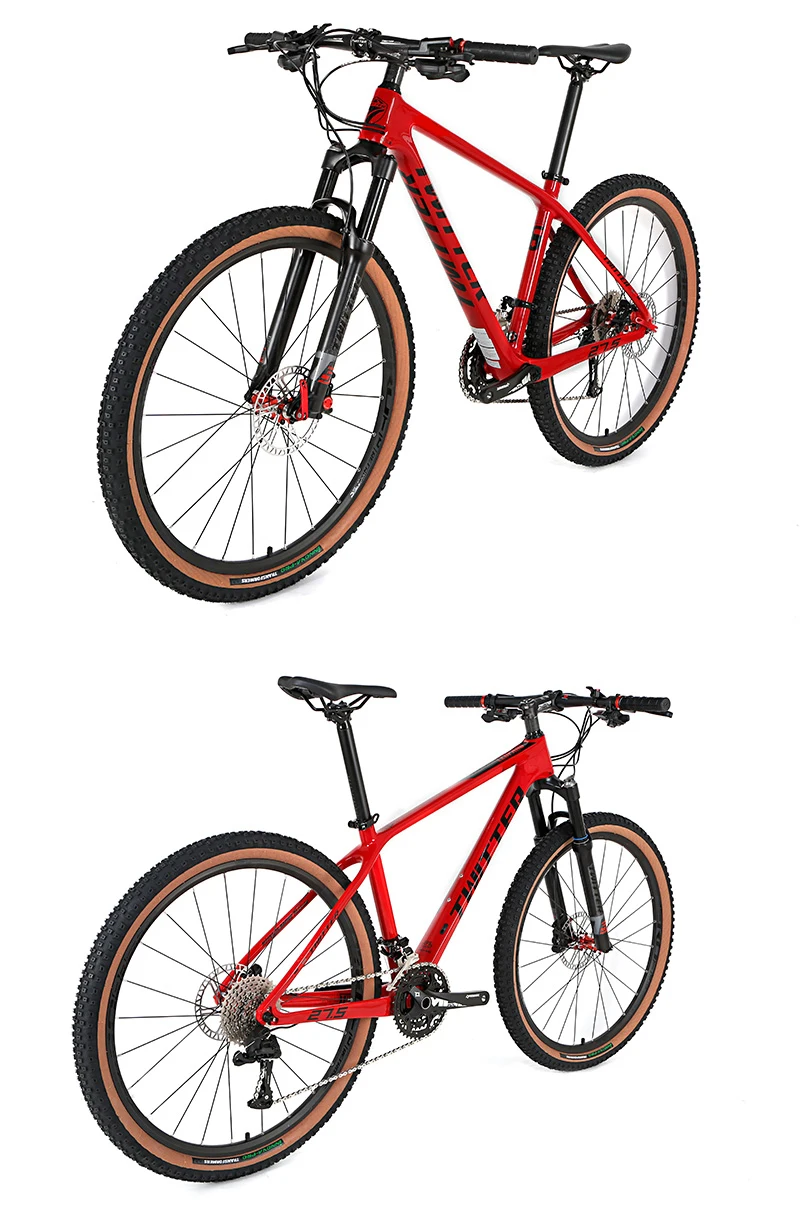

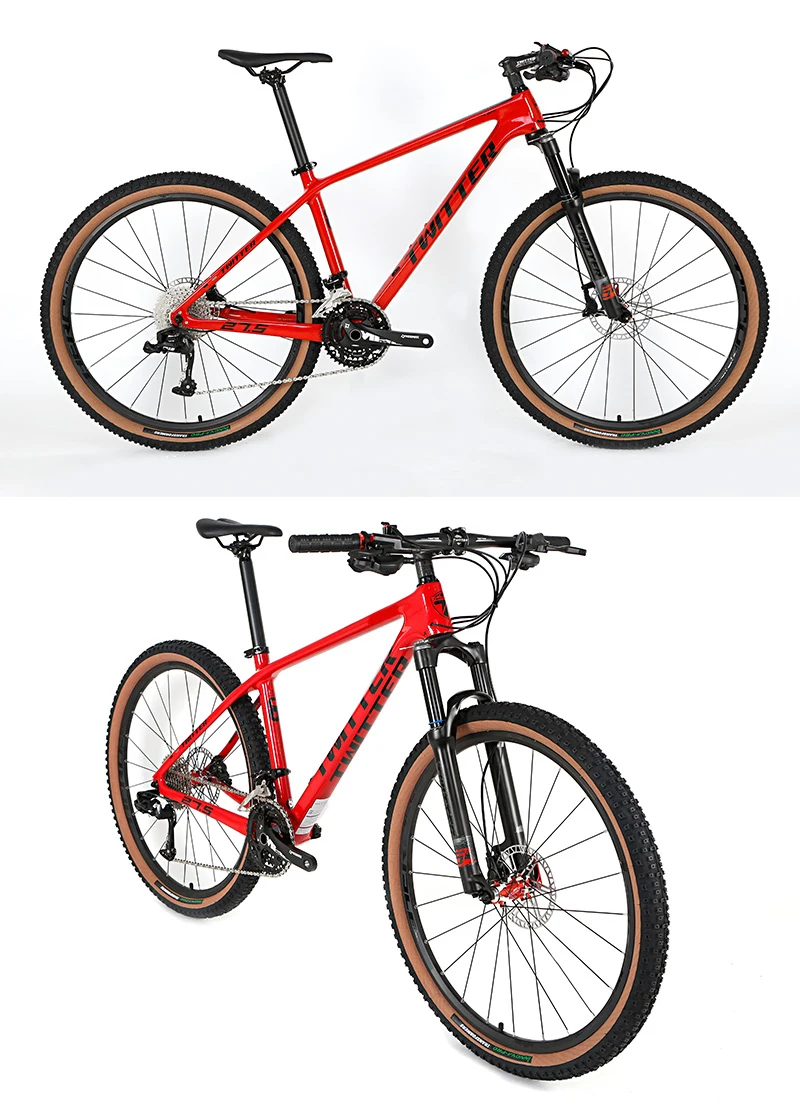

Bike Model
|
LEOPARDpro (main)
|
|
|
ConfRev
|
RS-30S
|
|
|
Wheel Size
|
29″ / 27.5″
|
|
|

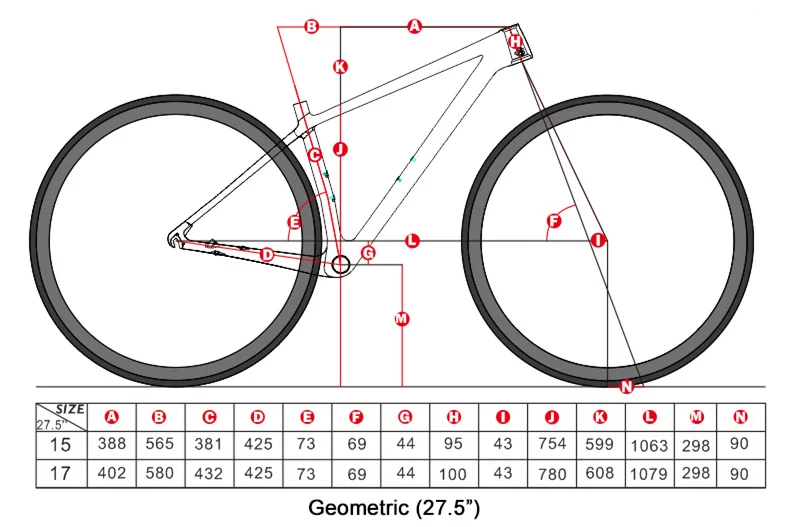

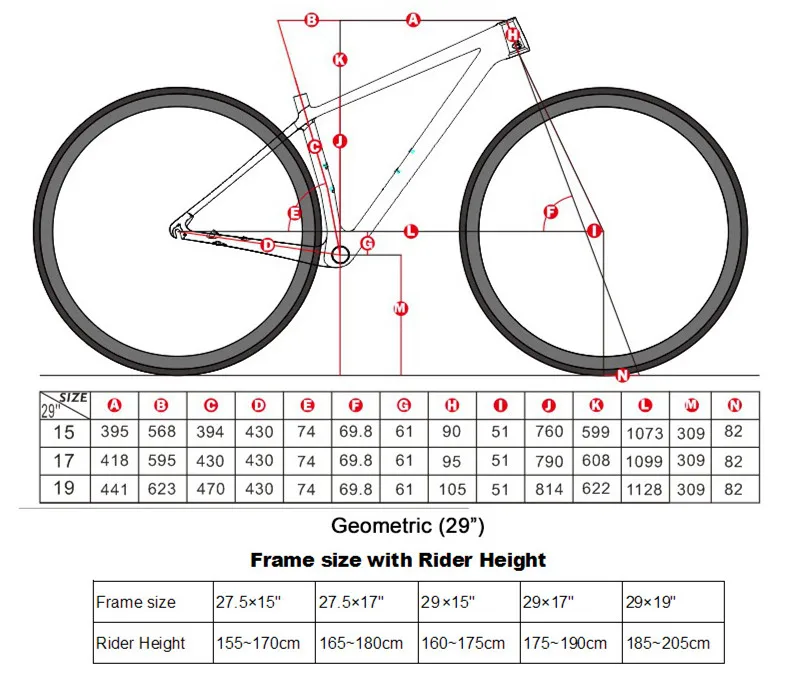

Frame Height
|
29×15″ / 17″ / 19″, 27.5×15″ / 17″
|
|
|

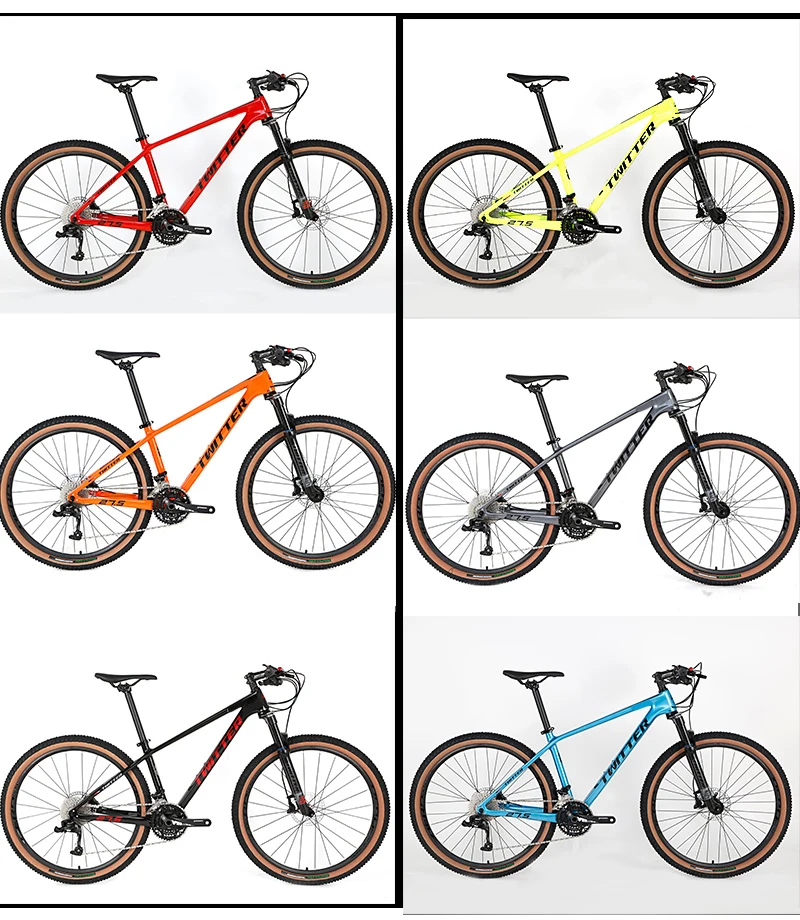

Bike Color
|
Red / DarkGray / Blue / Yellow / Orange / BlackRed / BlackSilver / WhiteRed, Holographic color(Red / Black /Yellow)
|
|
|
Net Weight
|
12.3KG
|
|
|

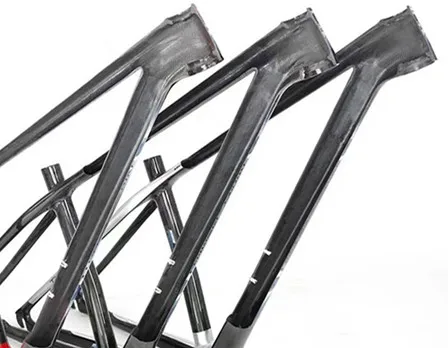

Frame
|
LEOPARDpro, High modulus Carbon fiber,EPS,Inner-Cable,Gloss paint,UV laser decals
|
|
|
Handelbar Sets
|
TW Alu alloy,Matte with Laser-logo,Handlebar 31.8×700,Stem 90mm,Seat post 31.6×350mm
|
|
|
Clamps
|
TW Alu alloy,Single screw lock 34.9mm
|
|
|

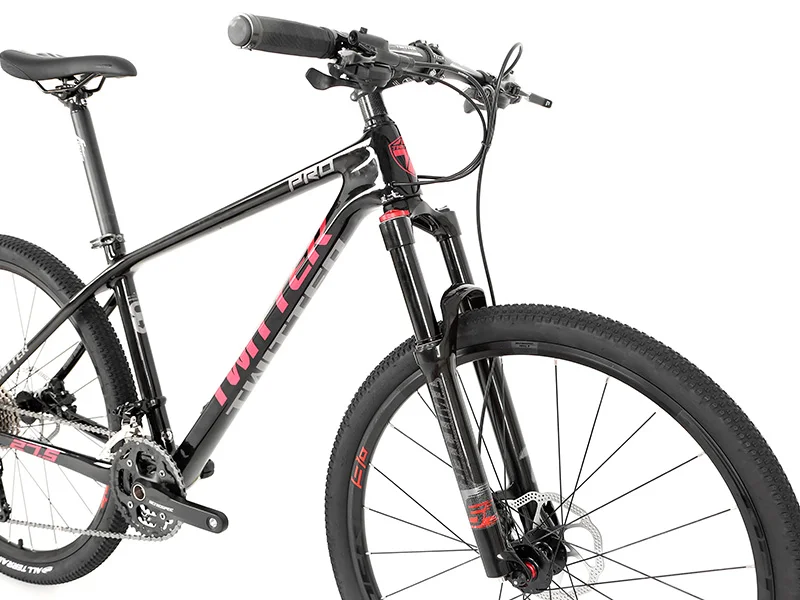

Fork
|
TW MgAl alloy,Air suspension,Remote
|
|
|

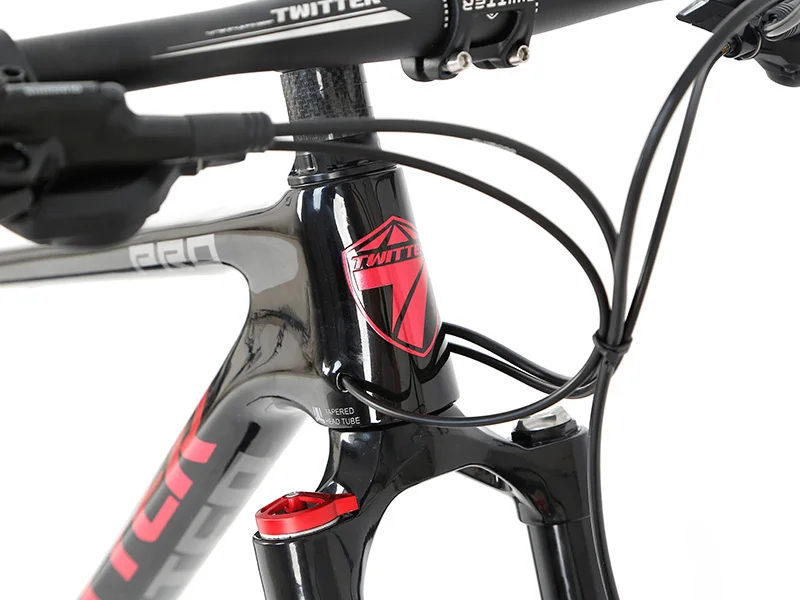

Head Sets
|
TW Alu alloy CNC with sealed Bearings 42*52mm
|
|
|
Washer
|
Carbon 3K 3×28.6×10mm
|
|
|
Derailleur Lever
|
RETROSPEC(LTWOO) V5010-30S
|
|
|
Front Derailleur
|
RETROSPEC(LTWOO) V5010
|
|
|

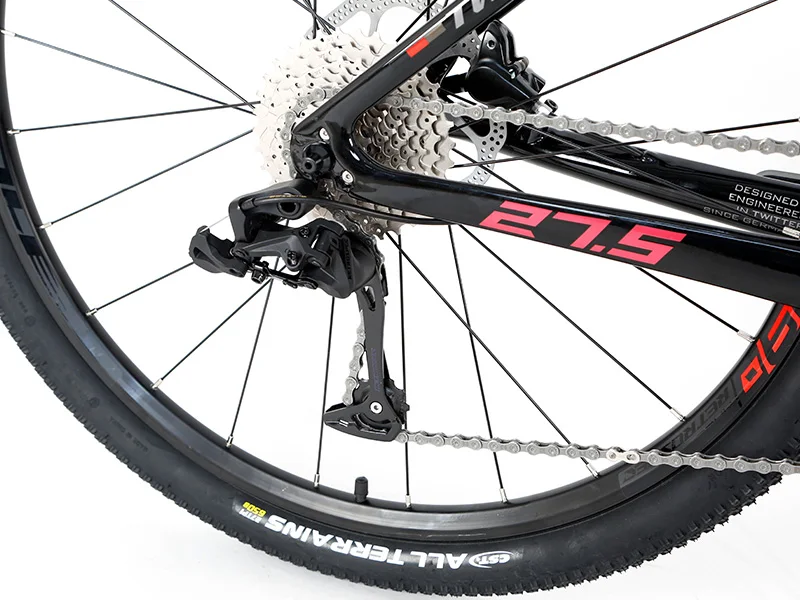

Rear Derailleur
|
RETROSPEC(LTWOO) V5010
|
|
|

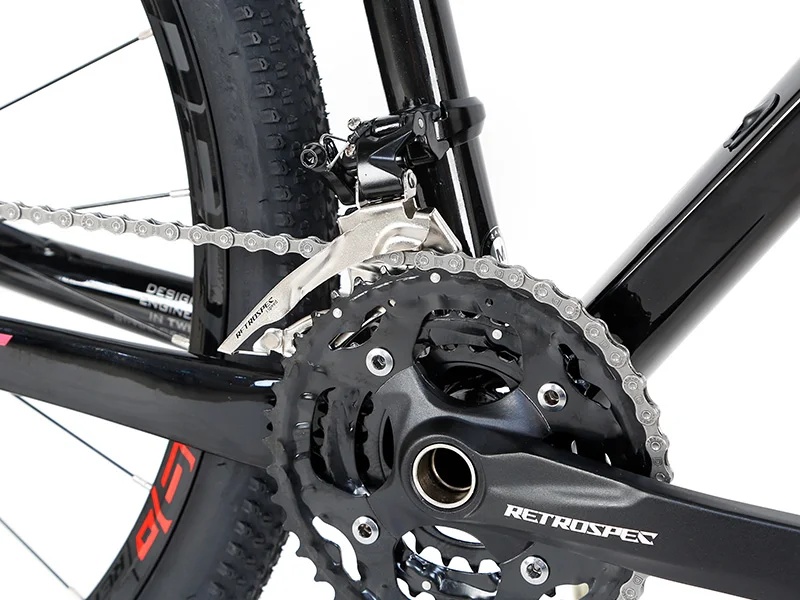

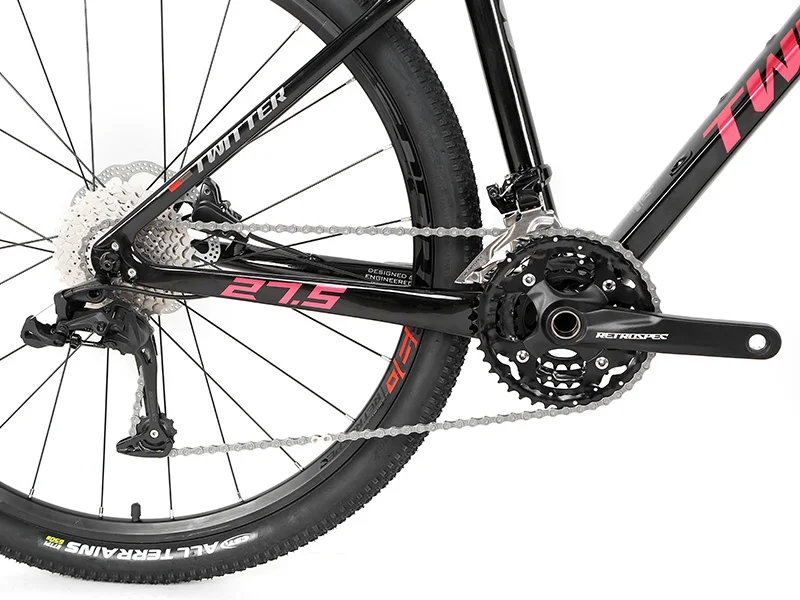

Cranksets
|
RETROSPEC, Alu alloy,Hollow,24-32-42T
|
|
|

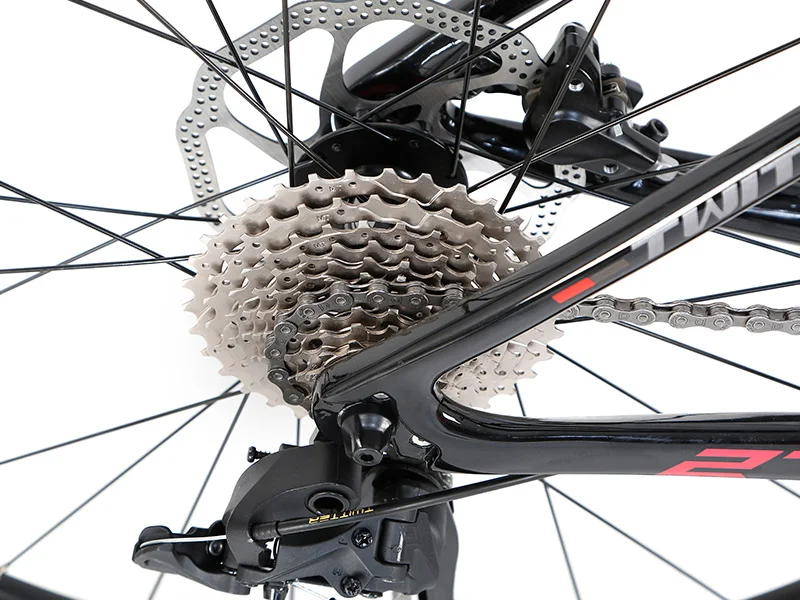

Cassettes
|
SUGEK-10S,11-36T
|
|
|
Chain
|
YBN-10S
|
|
|
BB
|
Hollow BB92×41×24, pressed
|
|
|

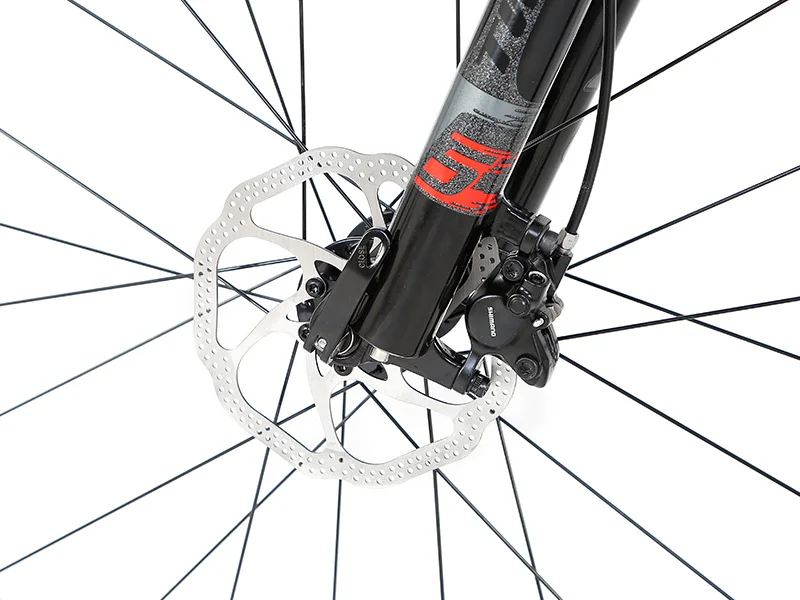

Brake
|
ZOOM hydraulic brake+HS1 disc 160/160
|
|
|

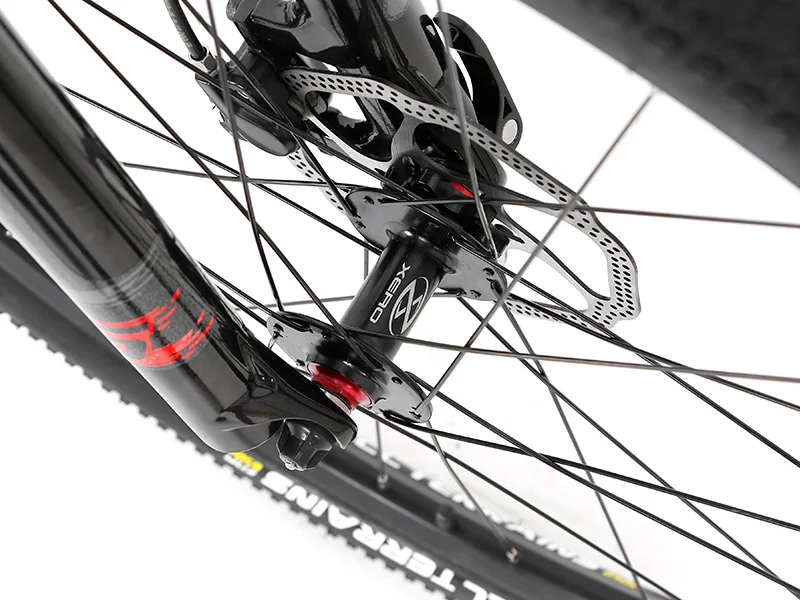

Hubs
|
RS Alu alloy,2-sealed Bearings,Slotted,Disc,32Holes
|
|
|
Rim
|
RS Alu alloy,Double wall with rivets,W24×H19mm
|
|
|
Spoke
|
SHUNJIU,Circular 14G,Bend head
|
|
|

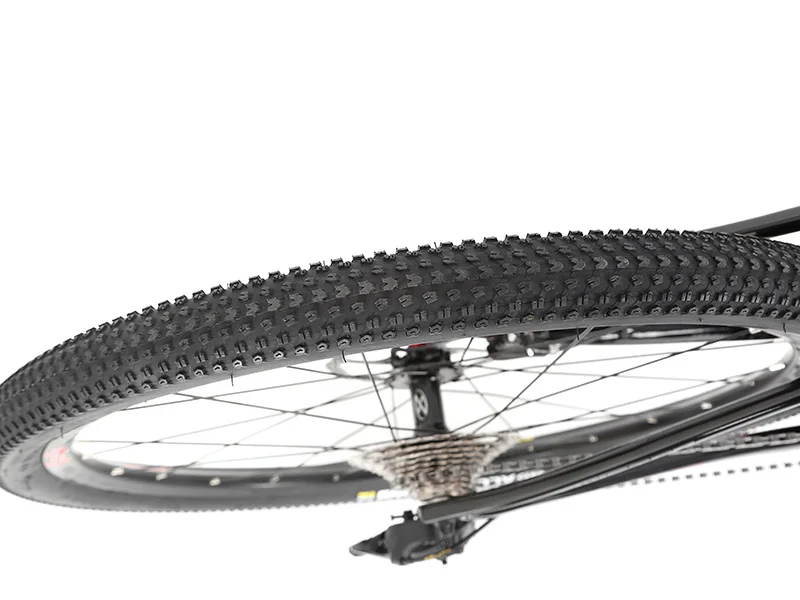

Tyre
|
INNOVA-PRO, CROSS FIT, 60TPI, Skin-color edge, 29/27.5×2.1″
|
|
|
Grips
|
TW circular 22.2×130mm with locking ring,Comfortable
|
|
|

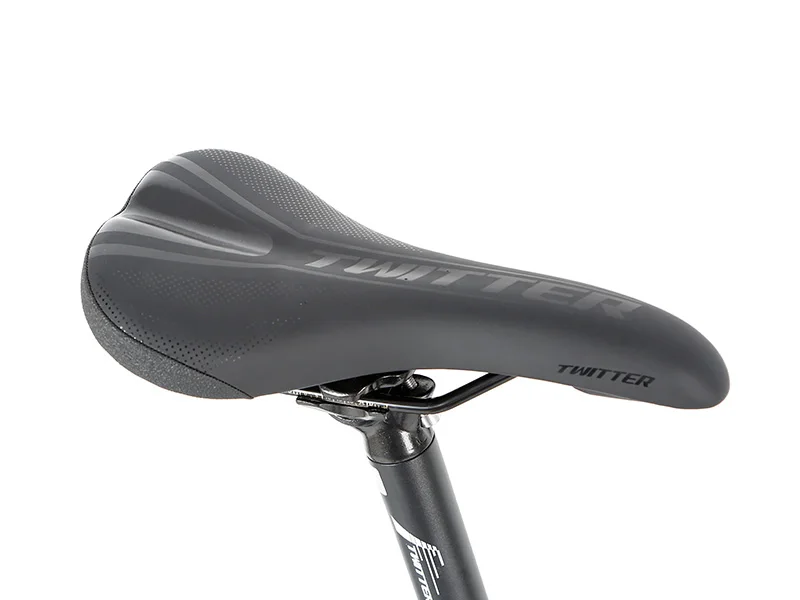

Saddle
|
TW Comfortable and Lightweight for MTB
|
|
|
Pedals
|
GY Alu alloy with lubricating for MTB
|
|
|
Cables
|
JAGWIRE,Internal cables,External cables
|
|
|
Accessories
|
Standard safety reflector for Handelbar+Seat post+Front wheel+Rear wheel
|
|
|
|
PC Bottle cage+Tools
|
|
|
|
TWITTER Manual+Warranty card
|
|
|


















and joint between the inner cavity of the frame; >4 greatly reduce the excessive concentration of internal stress of the frame, the length of the finished frame life, stable quality;
