TWITTER EM8 NX-11S Bafang mid-mounted motor M600-48V15a-500W e bike bicycles electric bicycle kit with battery electric moped
$3,278.00 – $3,627.80
- Certification: CE
- Rated Passenger Capacity: One Seat
- Style: Luxury Type
- Max Speed: 30-50km/h
- Range per Power: > 60 km
- Frame Material: carbon fibre
- Motor: Brushless
- Wheel Size: 27.5/29
- Wattage: > 500w
- Foldable: No
- Power Supply: lithium battery
- Voltage: 36V48V
- Brand Name: TWITTER
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: CYCTRAC/Customized
- Model Number: EM8 NX11+M410+36V16A
- Gears: 11 Speed
- Range per Power: > 60 km
- Frame Material: Carbon Fibre
- Wheel Size: 27.5"/29"*2.35"
- Max Speed: <30km/h
- Voltage: 36V
- Power Supply: Lithium Battery
- Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)
- Torque: 80-100 Nm
- Charging Time: >3 hours
- Motor position: Central Motor
- Battery Position: Down Tube
- Battery Capacity: 13.4 Ah
- Tire Width: 27.5*2.25", 29*2.25"
- Product name: Carbon Fiber ebike with bafang motor
- Motor: Bafang M410, Mid, 36V250W
- Max Load: 130kg
- Brake: SHIMANO MT200 hydraulic disc brake
- Derailleur Lever: SRAM NX-11S
- Battery: CN18650 power Lithium, 36V13A
- Endurance Mileage: 120-140KM (pedal assist)
- Max Torque: 80 N.M
- Monitor: Bafang, LCD digital, 0-5 Modes
- Warranty: 3 Years
|

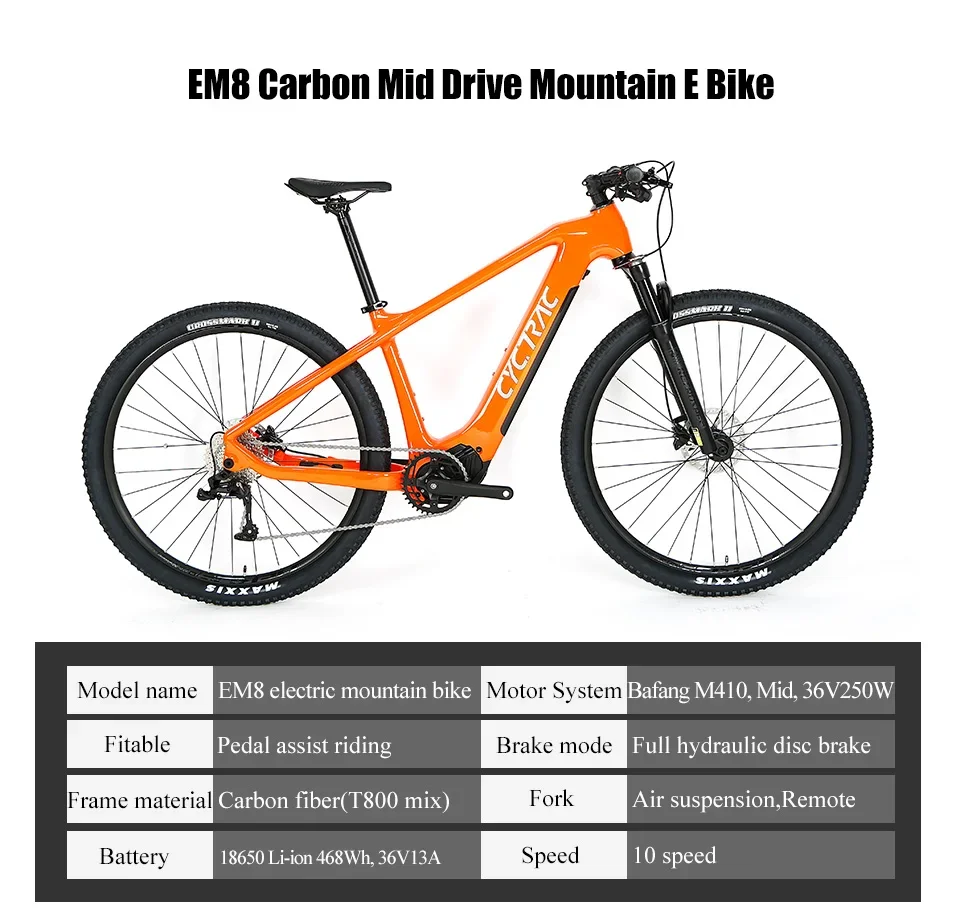

Bike Model
|
EM8
|
|
ConfRev
|
NX11+M410+36V16A
|
|

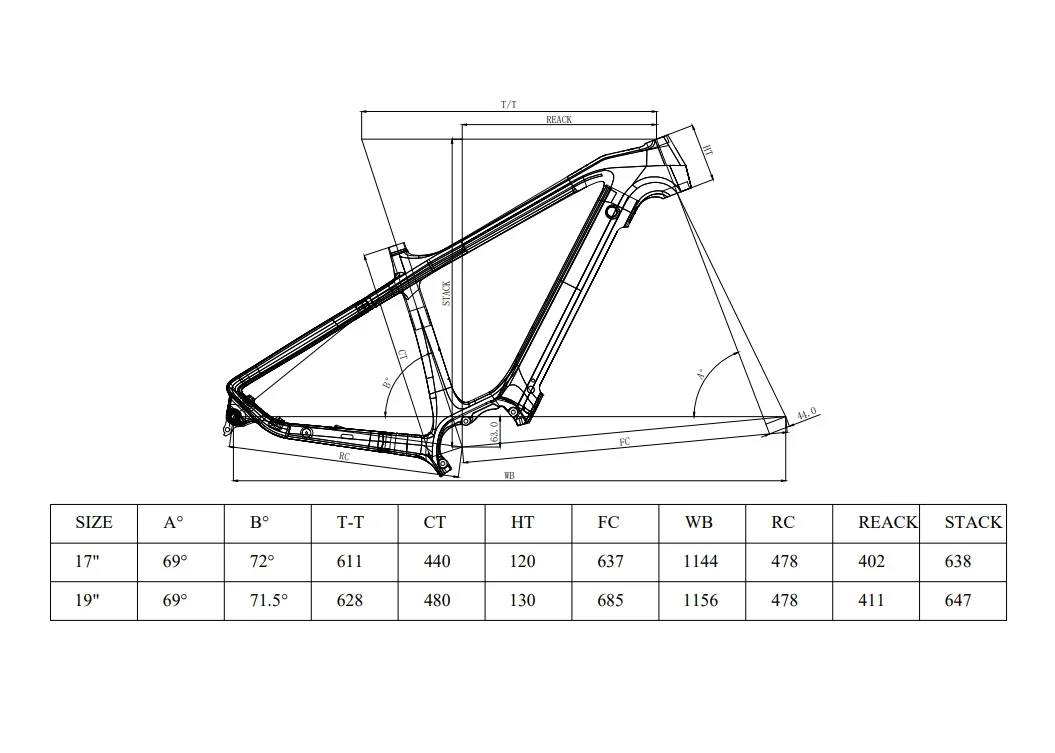

Frame Size
|
29(27.5)×17″ / 19″
|
|

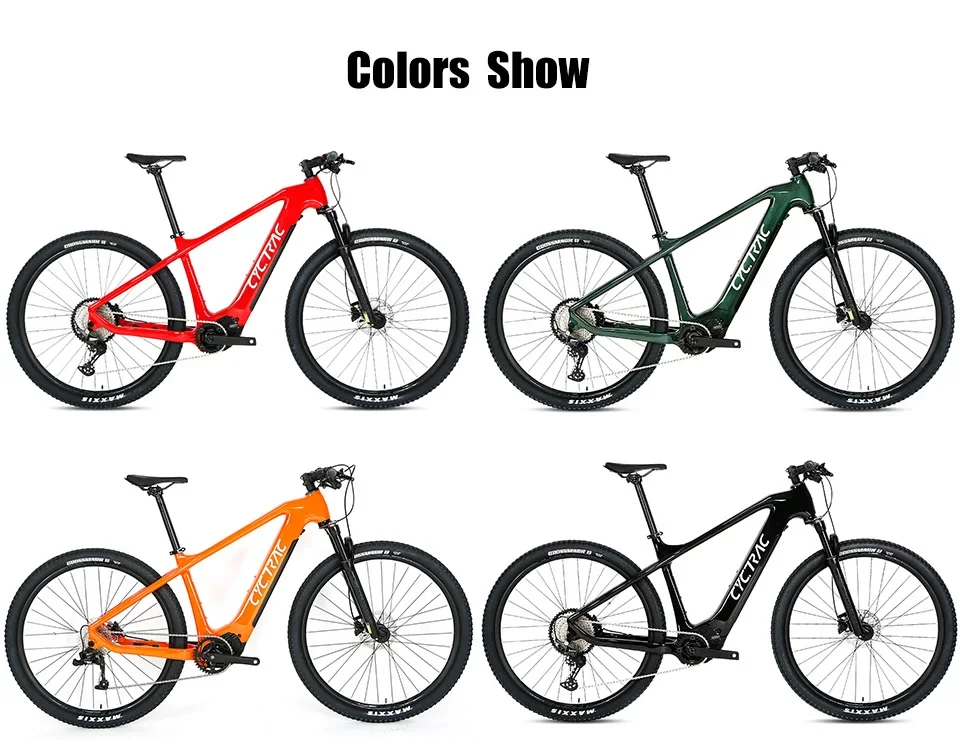

Bike Color
|
DarkGreen / Red / Orange / Black
|
|

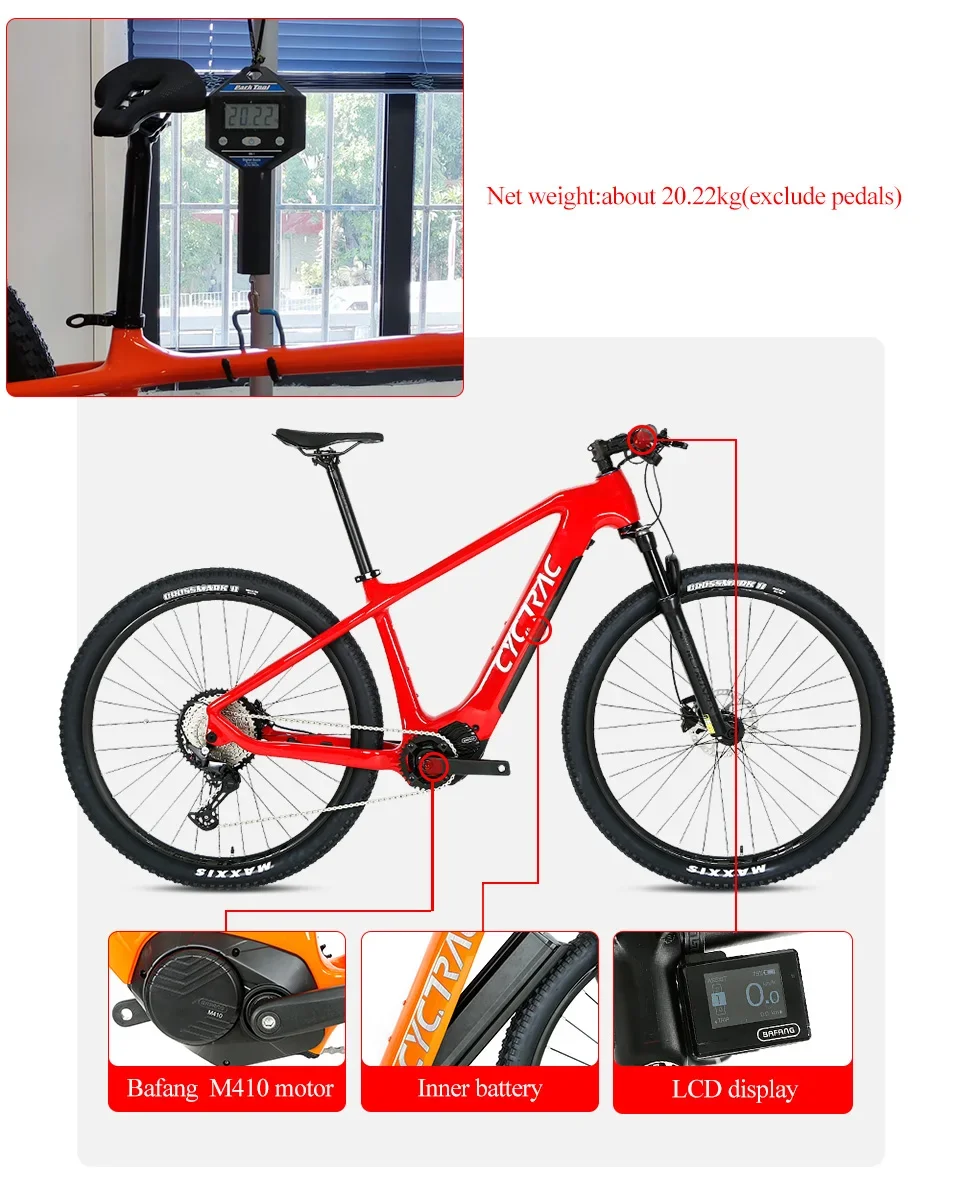

Net Weight
|
20.3KG
|
|

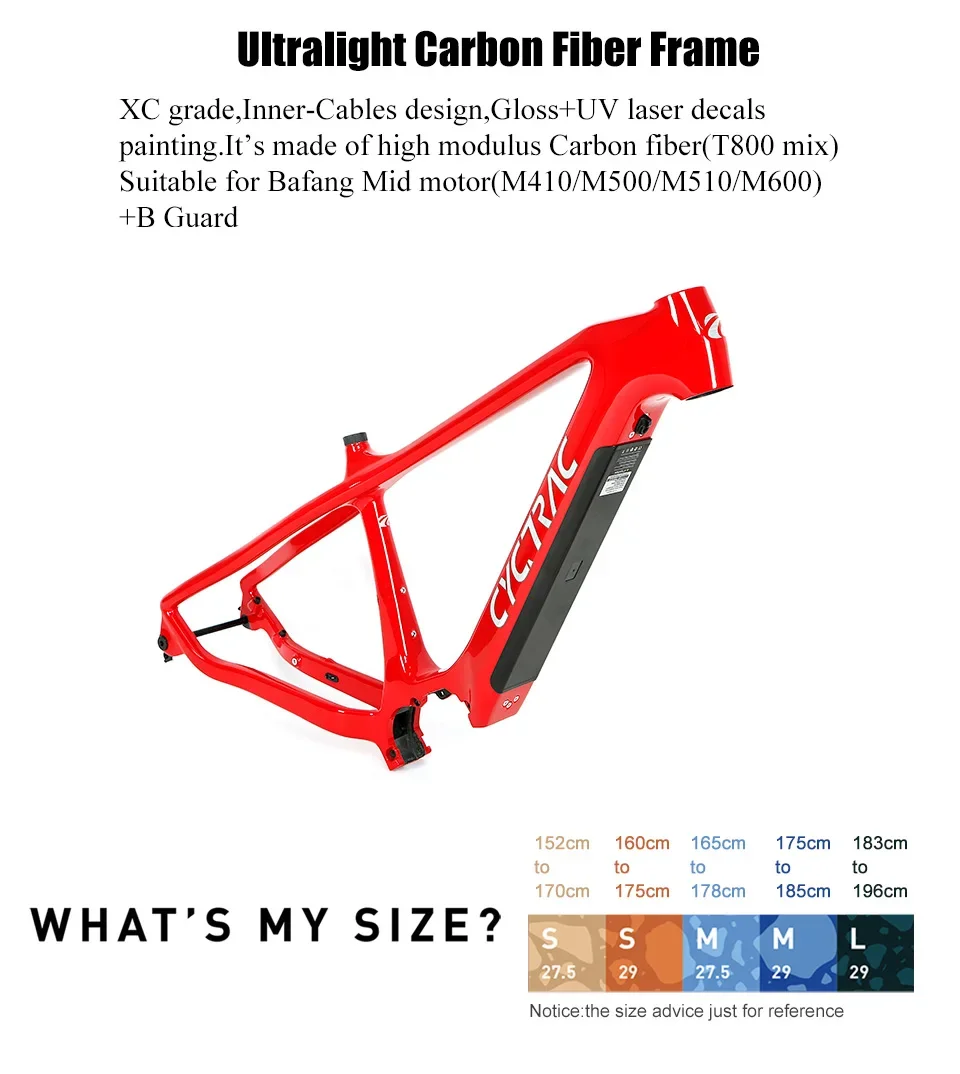

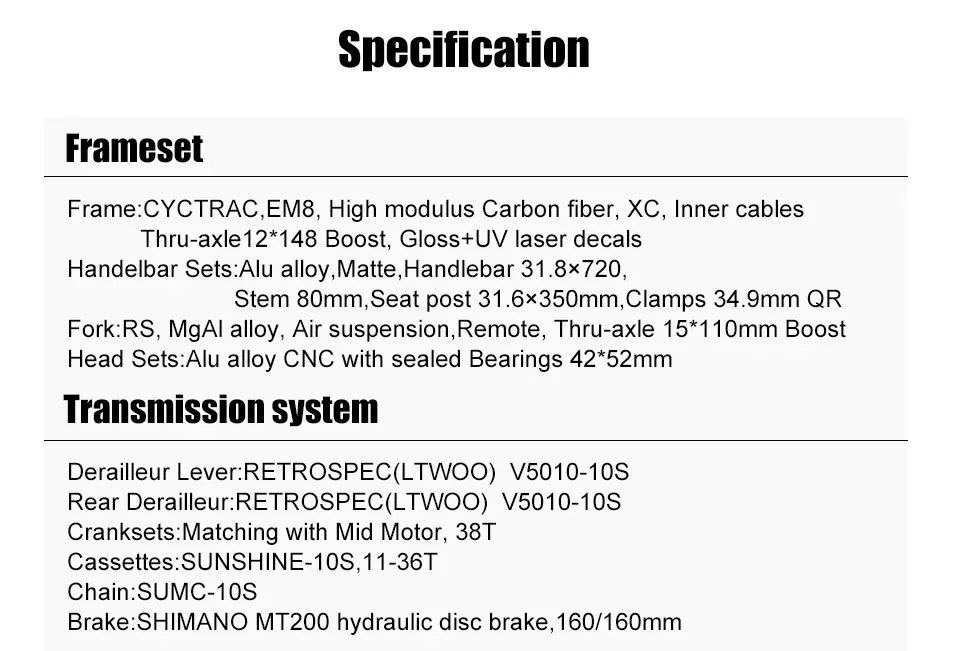

Frame
|
CYCTRAC,EM8, High modulus Carbon fiber, XC, Inner cables, Thru-axle12*148 Boost, Gloss+UV laser decals
|
|
Handelbar Sets
|
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR
|
|
Fork
|
RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
|
|
Head Sets
|
Alu alloy CNC with sealed Bearings 42*52mm
|
|
Derailleur Lever
|
SRAM NX-11S
|
|
Rear Derailleur
|
SRAM NX-11S
|
|
Cranksets
|
Matching with Mid Motor, 32T
|
|
Cassettes
|
SUNSHINE-11S,11-42T
|
|
Chain
|
SUMC-11S
|
|
Brake
|
SHIMANO MT200 hydraulic disc brake,160/160mm
|
|
Hub
|
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
|
|
Rim
|
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
|
|
Spoke
|
SHUNJIU, Circular 14G
|
|
Tire
|
MAXXIS, 29/27.5×2.25″
|
|
Grips
|
Circular 22.2×120mm, PU leather&locking Ring
|
|
Saddle
|
RS, Comfortable and Thickened for MTB
|
|
Pedals
|
RS, Alu alloy CNC with Bearings for MTB
|
|

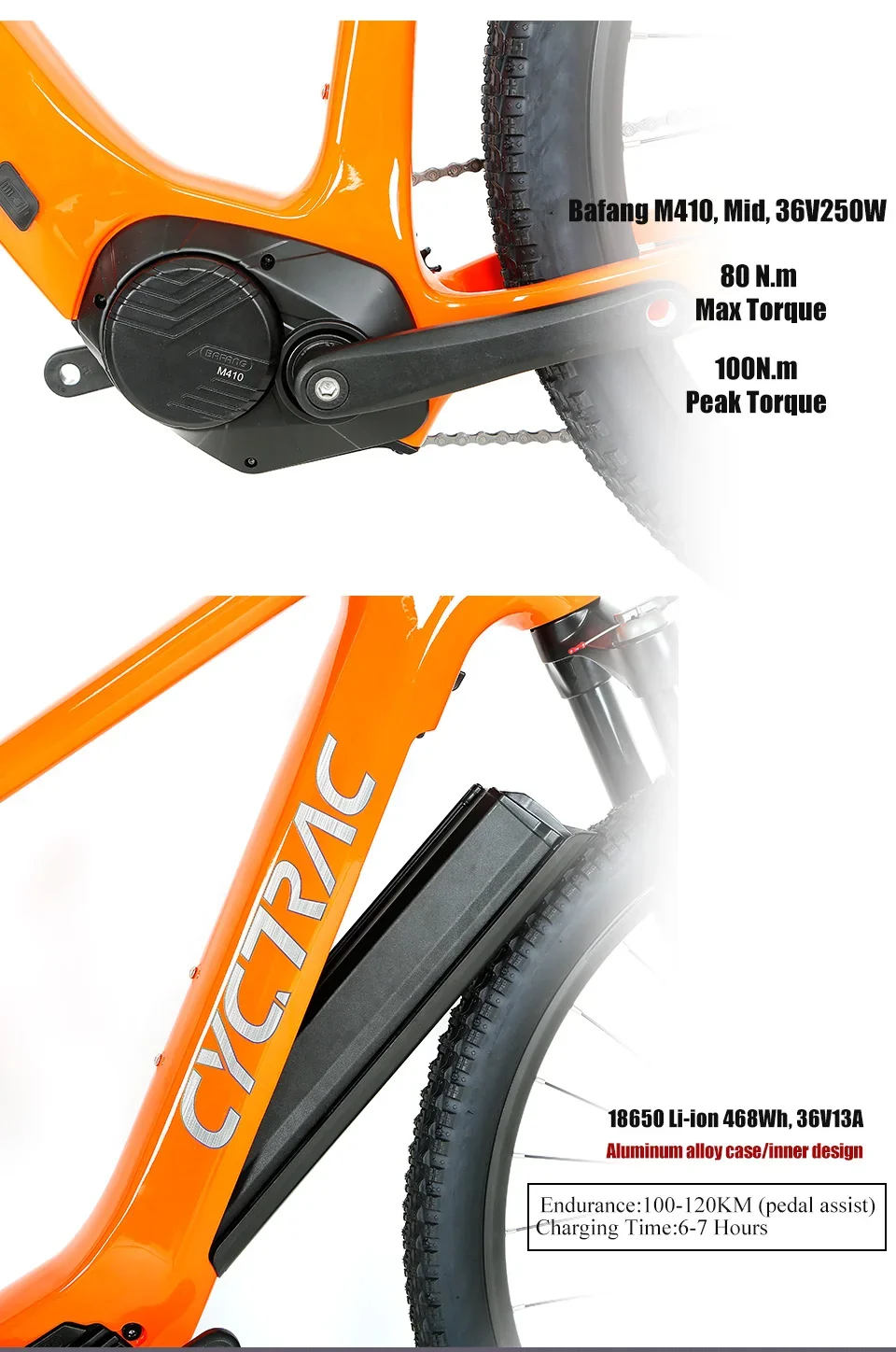

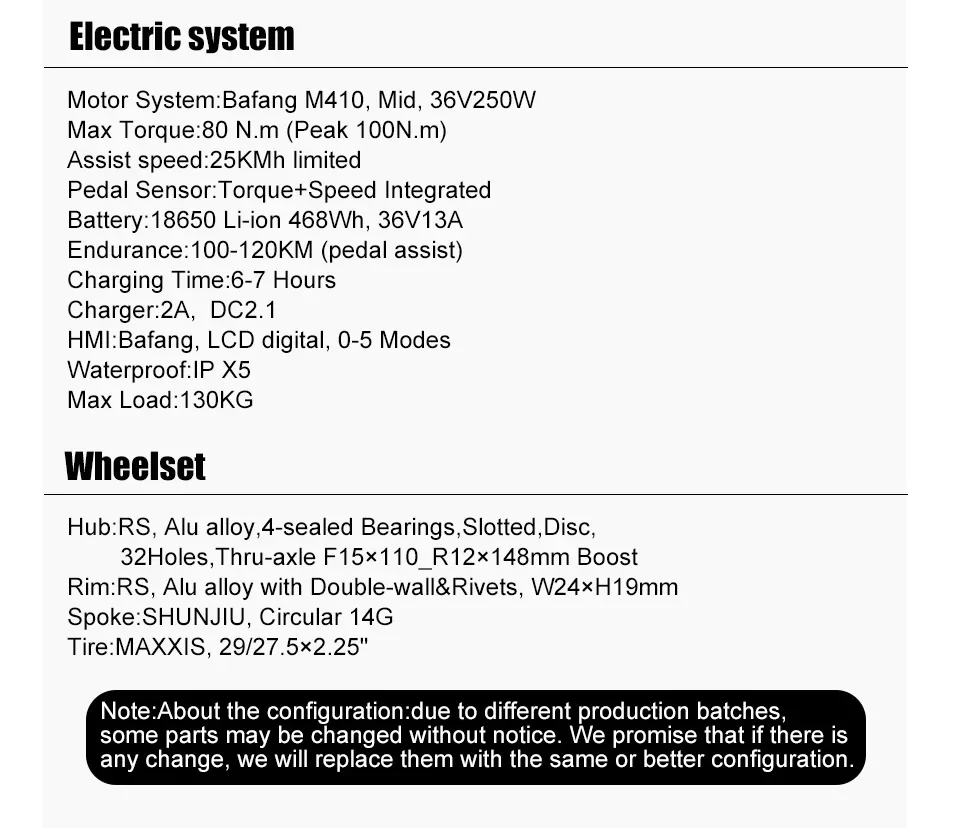

Motor System
|
Bafang M410, Mid, 36V250W
|
|
Max Torque
|
80 N.m (Peak 100N.m)
|
|
Assist speed
|
25KMh limit
|
|
Pedal Sensor
|
Torque+Speed Integrated
|
|
Battery
|
18650 Li-ion 468Wh, 36V13A
|
|
Endurance
|
100-120KM (pedal assist)
|
|
Charging Time
|
6-7 Hours
|
|
Charger
|
2A, DC2.1
|
|

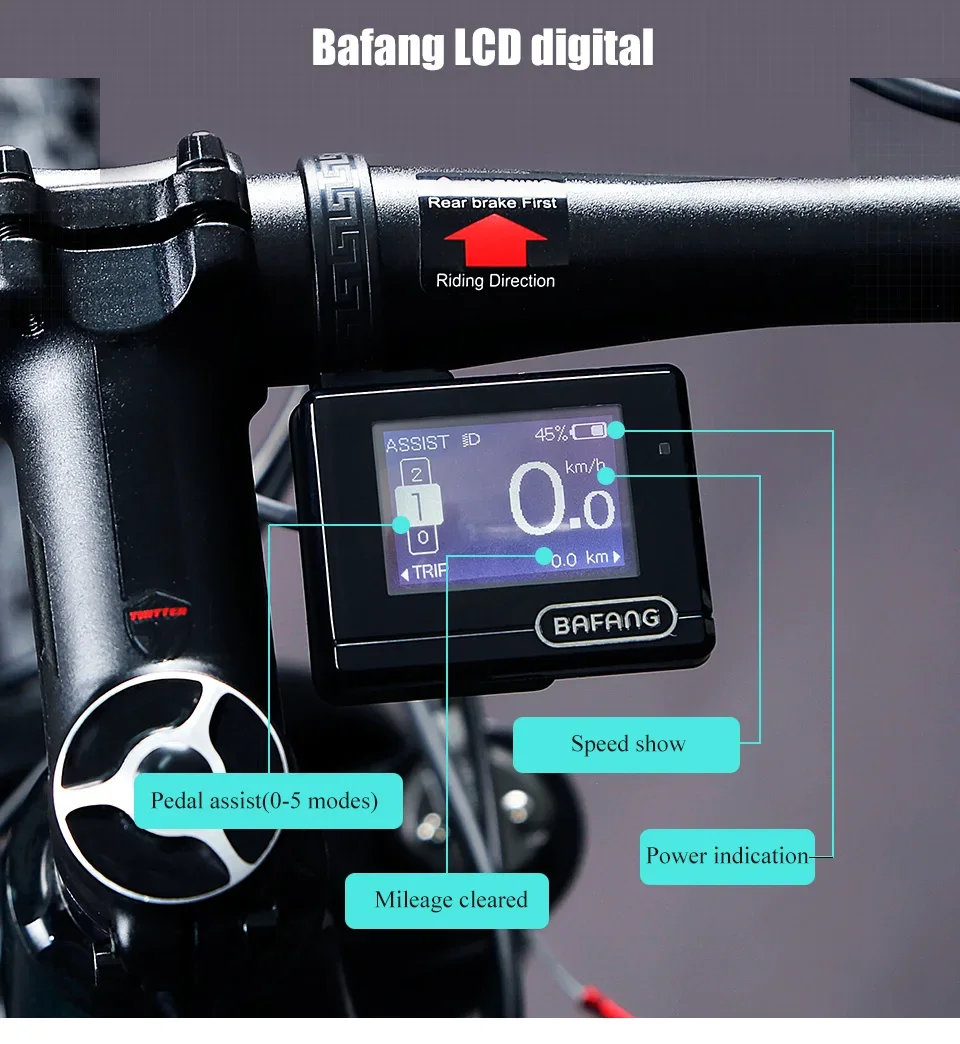

HMI
|
Bafang, LCD digital, 0-5 Modes
|
|
Waterproof
|
IP X5
|
|
Max Load
|
130 KG
|
Product packaging
>1.Material:Carton outside with Foam protection inside package. >2.Size:140CM*75CM*20CM >3.The pictures below are just a way of showing the packaging and do not represent the actual product.

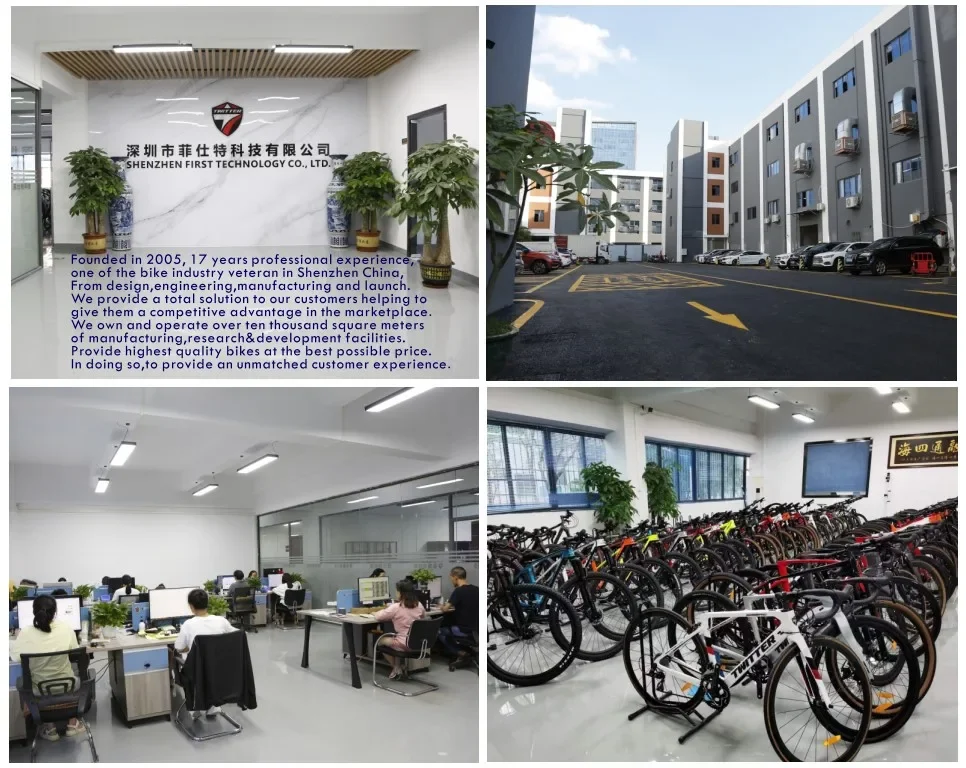

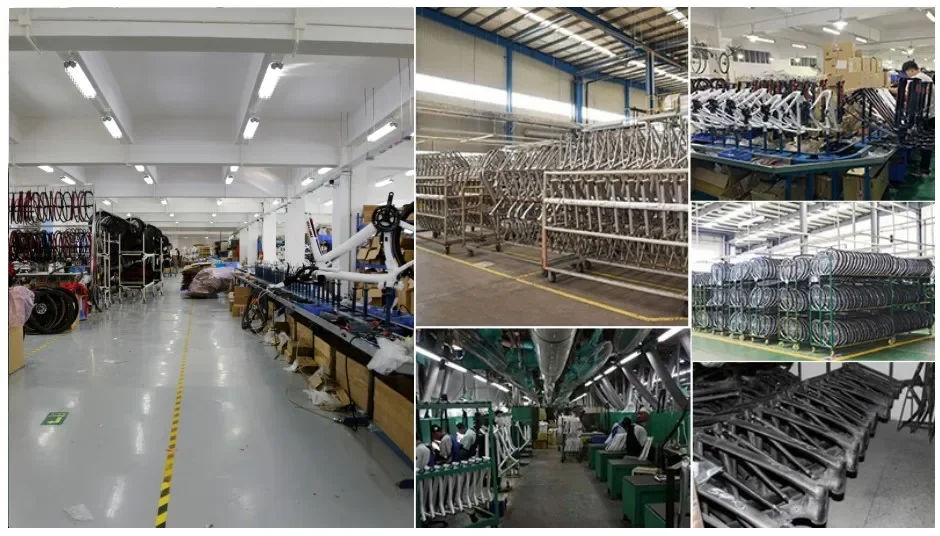

Company Profile
Customer Photos
Our Services & Strength
>1.Bicycle frame made of high quality Carbon Fiber material.All carbon bikes used toray carbon T800/T900/T1000 material with crafted EPS technology. >2.We can offer very good quality with nice price.The parts which have high requirement about the size will be precisely machining, finally all the parts will be assembled by manual and inspected strictly in high standard requirement.

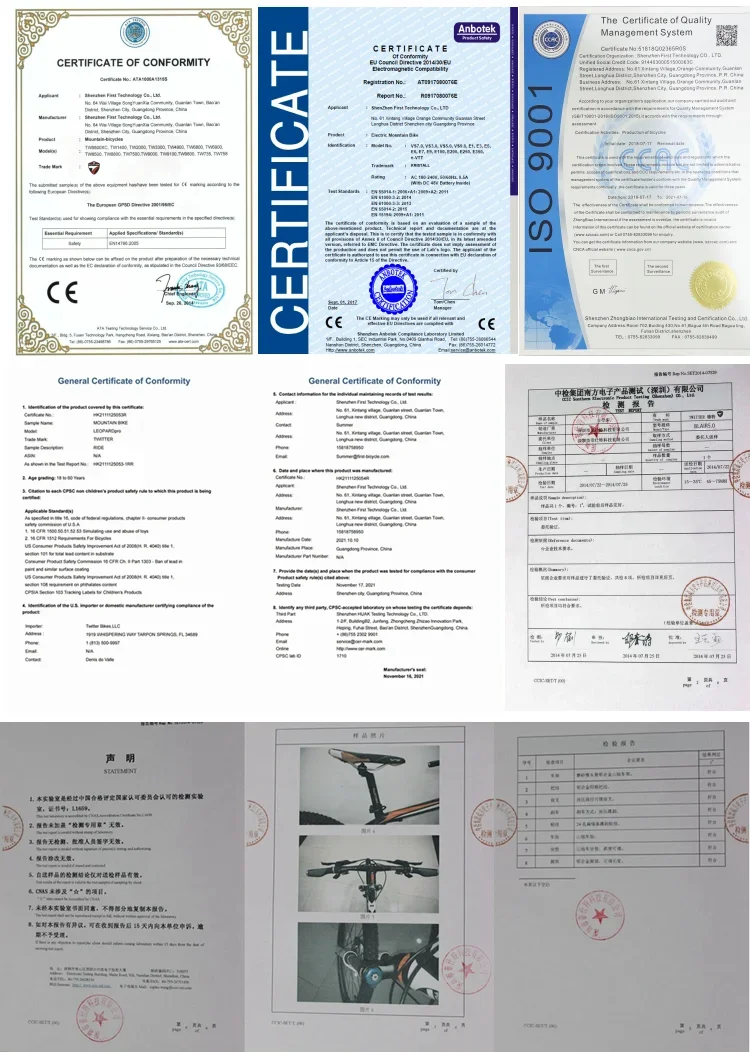

Certifications
Our Advantages
FAQ
>1. Q: Can I get some samples? A: We are honored to offer you sample for quality check. >2. Q: Can I mix different models? A: Yes,different models can be mixed . >3. Q: What payment do you accept? A: In general, our payment is trade assurance order for retail order and bulk order accept T/T ,Deposit and etc. >4.Q: If you want to know more about us psl contact me directly.^_^ whatsapp/wechat:+86 19832664352
