27.5/29er electric assist bike softtail mountain bike carbon frame Bafang mid torque motor emtb Lindau Electric Mountain e-Bike
$4,718.14
- Model Number: CYCTRAC-EM10
- Certification: ce
- Rated Passenger Capacity: One Seat
- Style: Luxury Type
- Max Speed: 30-50km/h
- Range per Power: > 60 km
- Frame Material: carbon fibre
- Motor: Brushless
- Wheel Size: 27.5
- Wattage: 351 – 500w
- Foldable: No
- Power Supply: lithium battery
- Voltage: 48V
- Brand Name: HRTC
- Origin: Mainland China
Premium Performance
The EM10 is our most ambitious full-suspension eBike yet. Featuring a premium carbon fibre frame and top-of-the-line components, this electric mountain bike walks-the-walk.
MOTOR IS THE SOUL
POWER IS FUN!
HRTC has been working with Bafang closely in the past 5 years. Both M510 & M600 motor systems are their latest work of art with a much improved torque sensor delivery – the best we have ever tested! Power is meaningless without smooth delivery especially on the trails.
|
Bike Model |
EM10 |
|
ConfRev |
M6100/12+M600+48V15A |
|
Frame Size |
29(27.5)×17" |
|
Bike Color |
BlackRed / BlackDarkGreen / BlackDarkGray Blueblack |
|
Net Weight |
23.1KG |
|
Frame |
CYCTRAC, EM10,AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,DNM rear shox200*55,Gloss+UV laser decals |
|
Handelbar Sets |
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Clamps 34.9mm QR, KS adjustable lifting Seat post(Remote,31.6**395*125mm) |
|
Fork |
ROCKSHOX-RECON, Air suspension,150mm, Manual-lockout, Thru-axle 15*110mm Boost |
|
Head Sets |
Alu alloy CNC with sealed Bearings 52*52mm |
|
Derailleur Lever |
SHIMANO DEORE/M6100-12S |
|
Rear Derailleur |
SHIMANO DEORE/M6100-12S |
|
Cranksets |
Matching with Mid Motor, 38T |
|
Cassettes |
SUNSHINE-12S,11-50T |
|
Chain |
SUMC-12S |
|
Brake |
hydraulic disc brake,180/180mm |
|
Hub |
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost |
|
Rim |
RS, Alu alloy with Double-wall&Rivets, W24×H19mm |
|
Spoke |
SHUNJIU, Circular 14G |
|
Tire |
MAXXIS/CROSSMARK, 29/27.5×2.25" |
|
Grips |
Circular 22.2×120mm, PU leather&locking Ring |
|
Saddle |
RS, Comfortable and Thickened for MTB |
|
Pedals |
RS, Alu alloy CNC with Bearings for MTB |
|
Motor System |
Bafang Mid, M600, Mid, 48V500W |
|
Max Torque |
120 N.m (Peak 140N.m) |
|
Speed Limit |
25KMh (max 45KMh) |
|
Pedal Sensor |
Torque+Cadence |
|
Battery |
21700 Li-ion 720Wh, 48V15A |
|
Endurance |
140-160KM (pedal assist) |
|
Charging Time |
8-9 Hours |
|
Charger |
2A, DC2.1 |
|

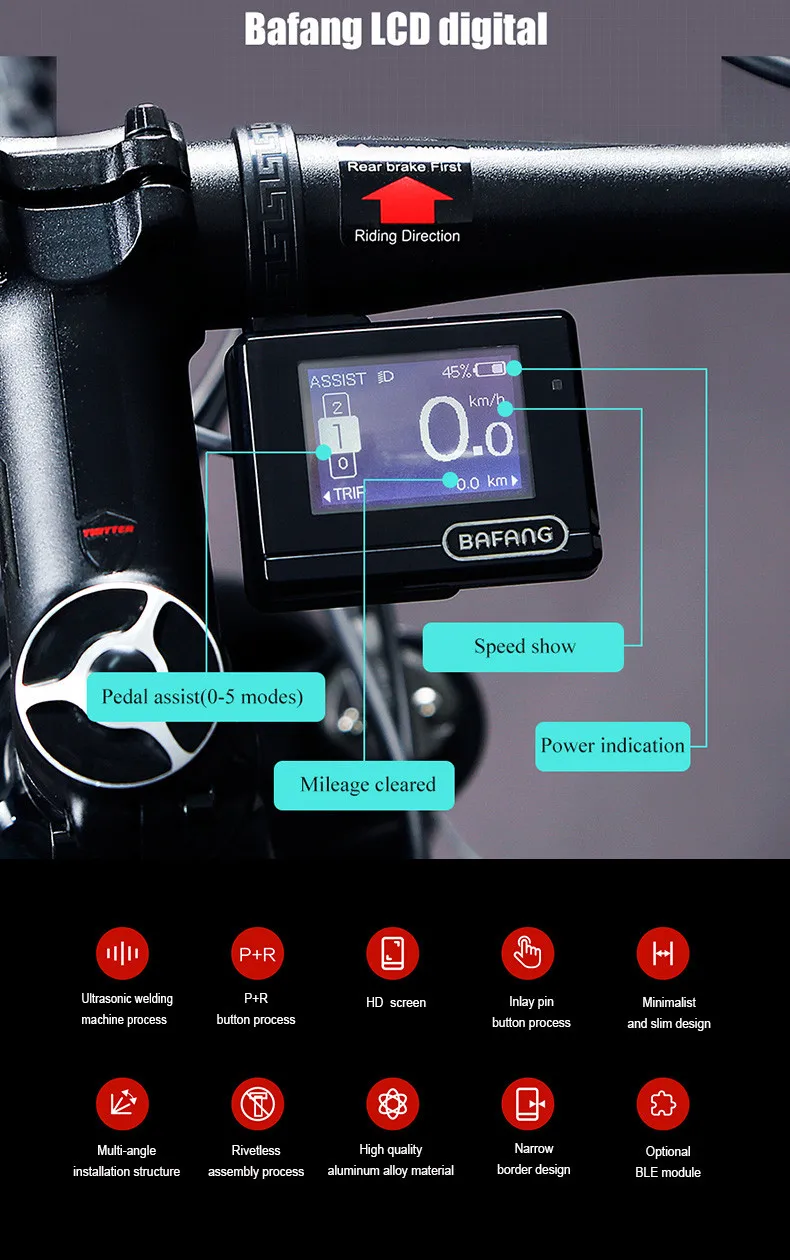

HMI |
Bafang, LCD digital, 0-5 Modes |
|
Waterproof |
IP X5 |
|
Max Load |
150 KG |
