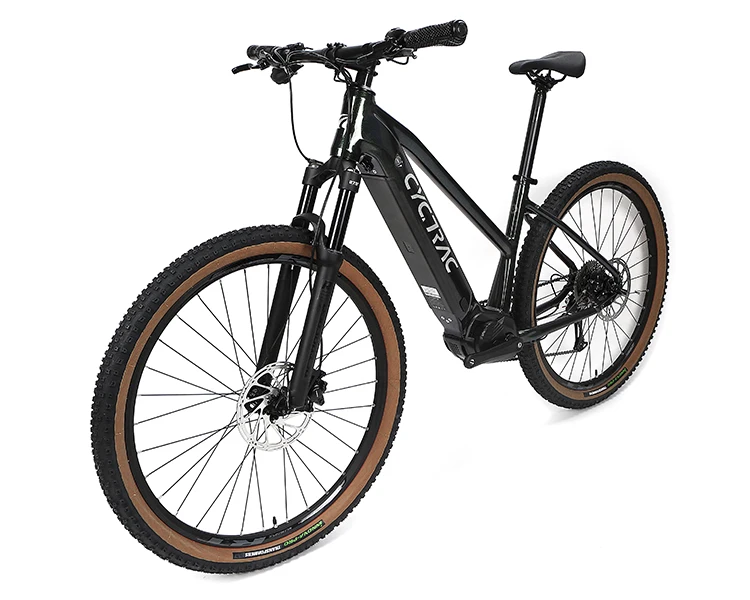

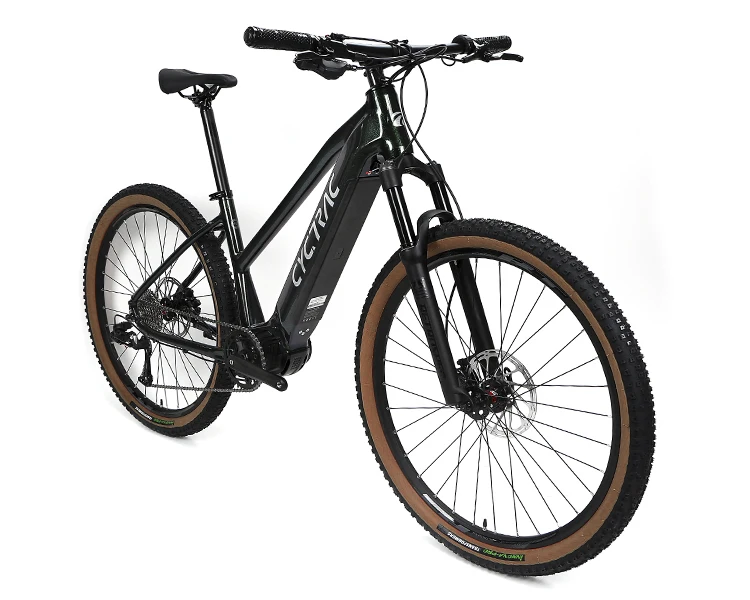

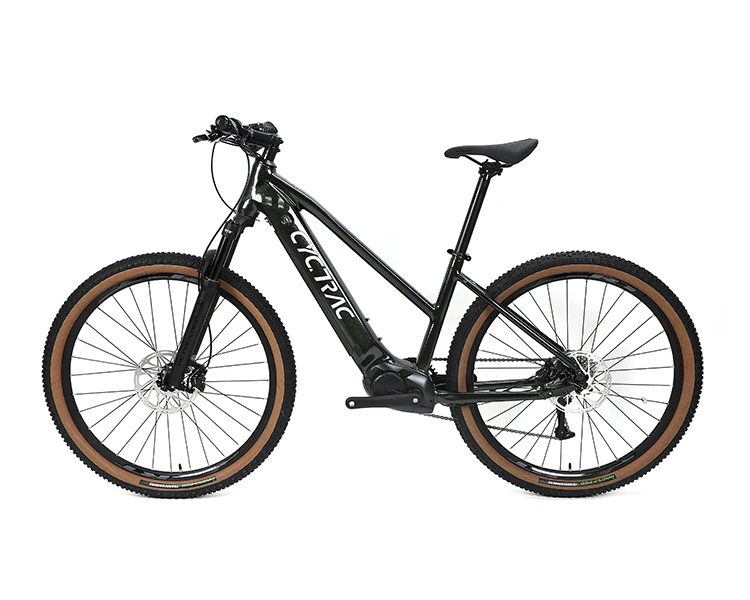

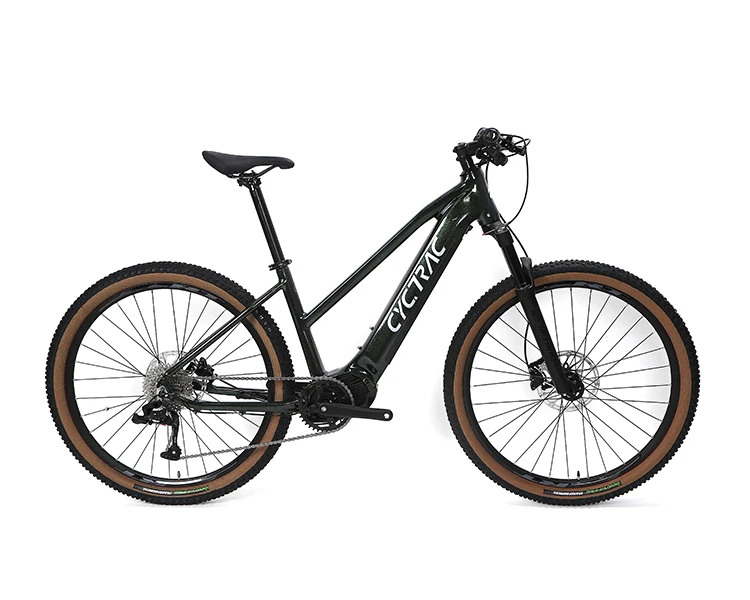

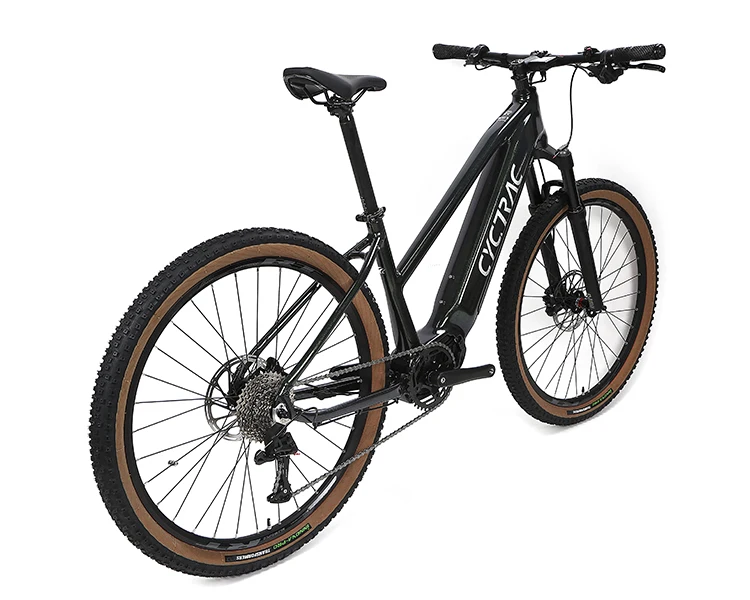

TWITTER-Internal Wiring Center Motor, Electric Powered Mountain Bicycle, E-Bike, EC1 RS-10S, M410 + 36V250W, 27.5in Aluminum All
$1,873.70
- Model Number: CM1
- Certification: CE
- Rated Passenger Capacity: One Seat
- Style: Luxury Type
- Max Speed: 30-50km/h
- Range per Power: > 60 km
- Frame Material: Aluminum Alloy
- Motor: Brushless
- Wheel Size: 27.5*16cm
- Wattage: 251 – 350w
- Foldable: No
- Power Supply: lithium battery
- Voltage: 36V
- Brand Name: F.YUZHE
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: CYCTRAC/Customize
- Model Number: EC1 RS-10+M410+36V13A
- Gears: 10 Speed
- Range per Power: > 60 km
- Frame Material: Aluminum Alloy
- Wheel Size: 27.5*2.25"
- Max Speed: 30-50Km/h
- Voltage: 36V
- Power Supply: Lithium Battery
- Braking System: Disc Brake
- Torque: 80-90 Nm
- Charging Time: >3 hours
- Motor position: Central Motor

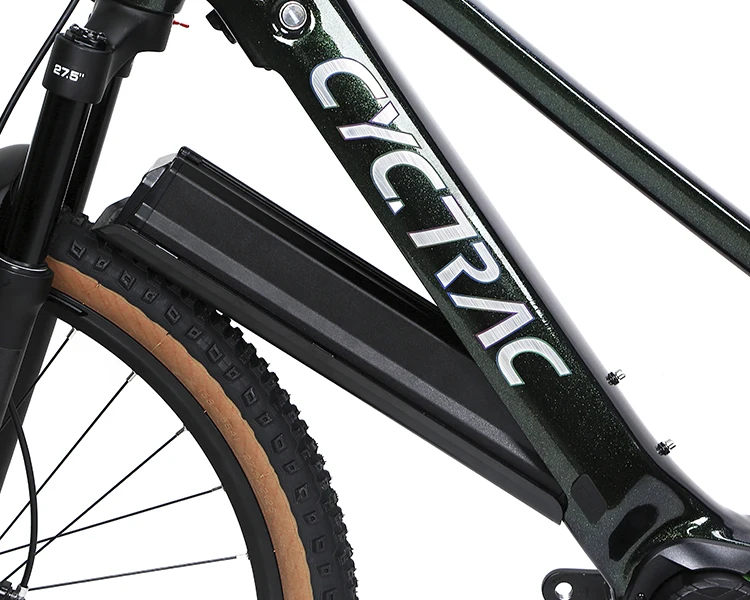

- Battery Position: Down Tube
- Battery Capacity: 13 Ah
- Smart Type: Sensor, Electronic
- Product name: EC1 electric city bike
- Motor: Bafang Mid, M410, 36V250W
- Max Load: 150kg
- Brake: SHIMAN MT200 hydraulic
- Derailleur Lever: RETROSPEC(LTWOO) V5010-10S
- Battery: 18650 Li-ion 468Wh, 36V13A
- Endurance Mileage: 100-120KM (pedal assist)
- Max Torque: 80 N.m
- Monitor: Bafang, LCD digital, 0-5 Modes
- Certification: CE ISO9001 MSDS
|
Bike Model
|
EC1city ebike electric city bike bafang m410 motor
|
|
ConfRev
|
RS10+M410+36V13A
|
|
Frame Size
|
27.5×16″
|
|
Bike Color
|
DarkGreen / LightBlue
|
|
Net Weight
|
21.4KG
|
|

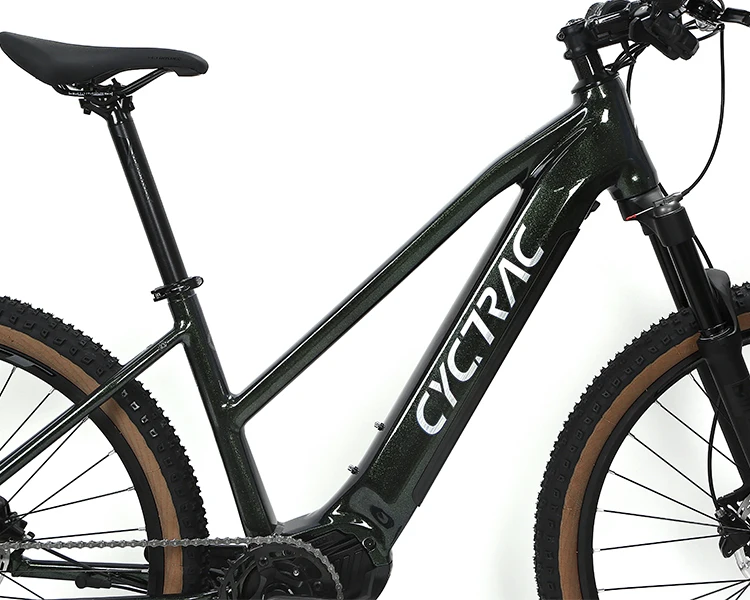

Frame
|
CYCTRAC, EC1, Alu alloy AL6061,Flat weld&Smooth,Inner cables, Gloss+UV laser decals
|
|
Handelbar Sets
|
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR
|
|

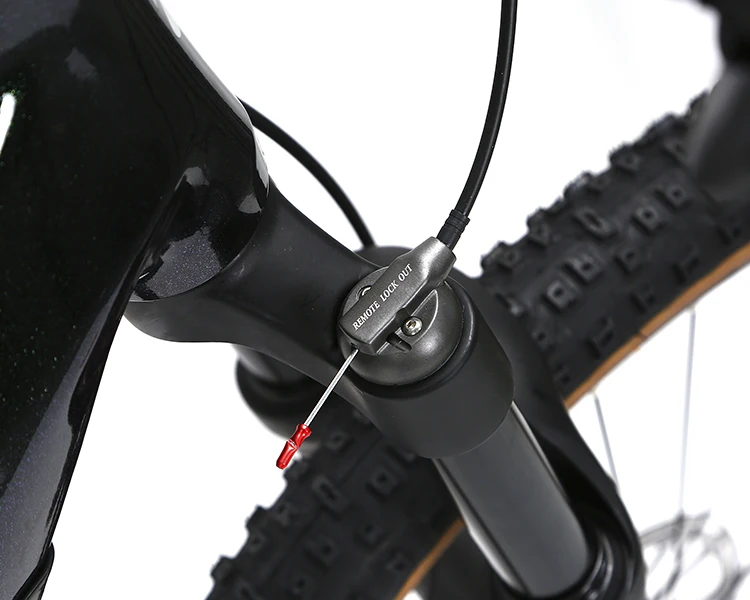

Fork
|
RS, MgAl alloy, Air suspension, Remote
|
|
Head Sets
|
Alu alloy CNC with sealed Bearings 52*52mm
|
|
Derailleur Lever
|
RETROSPEC(LTWOO) V5010-10S
|
|
Rear Derailleur
|
RETROSPEC(LTWOO) V5010-10S
|
|
Cranksets
|
Matching with Mid Motor, 38T
|
|
Cassettes
|
SUNSHINE-10S,11-36T
|
|
Chain
|
SUMC-10S
|
|
Brake
|
SHIMANO MT200 hydraulic disc brake,180/180mm
|
|
Hub
|
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes
|
|
Rim
|
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
|
|
Spoke
|
SHUNJIU, Circular 14G
|
|
Tire
|
INNOVA-PRO, CROSS FIT, Skin-color edge, 27.5×2.25″
|
|
Grips
|
Circular 22.2×120mm, PU leather&locking Ring
|
|
Saddle
|
RS, Comfortable and Thickened
|
|
Pedals
|
RS, Alu alloy CNC with Bearings
|
|

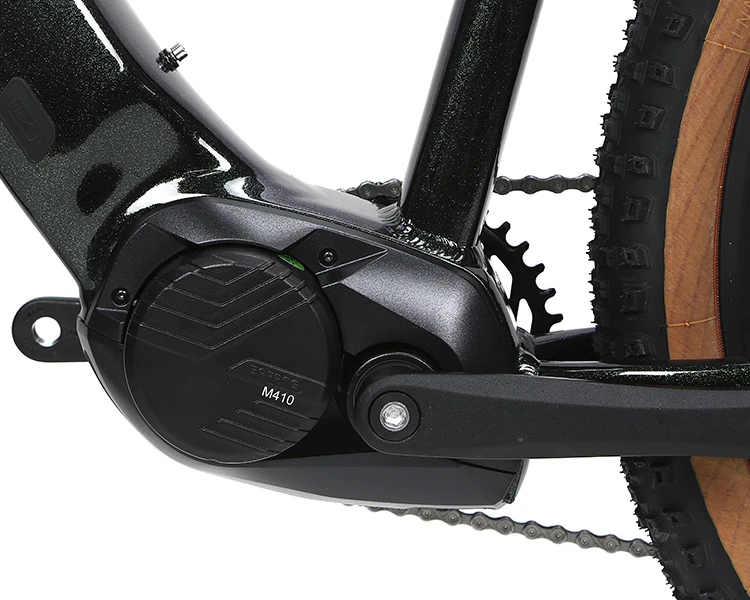

Motor System
|
Bafang Mid, M410, 36V250W
|
|
Max Torque
|
80 N.m (Peak 100N.m)
|
|
Speed Limit
|
25KMh (max 32KMh)
|
|
Pedal Sensor
|
Torque+Cadence
|
|
Battery
|
18650 Li-ion 468Wh, 36V13A
|
|
Endurance
|
100-120KM (pedal assist)
|
|
Charging Time
|
6-7 Hours
|
|
Charger
|
2A, DC2.1
|
|

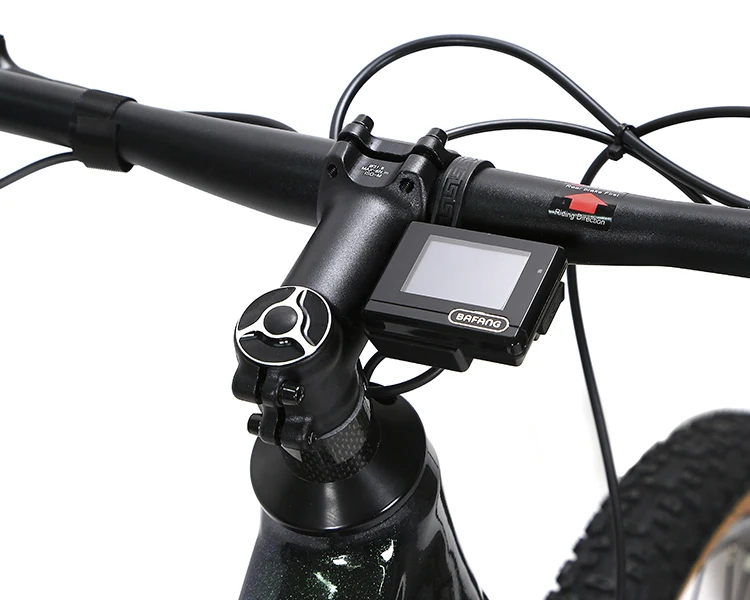

HMI
|
Bafang, LCD digital, 0-5 Modes
|
|
Waterproof
|
IP X5
|
|
Max Load
|
150 KG
|

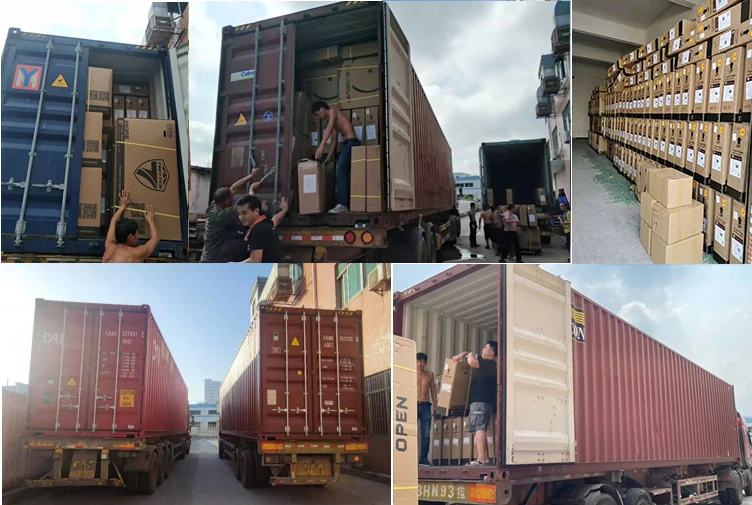

Product packaging
>1.Material:Carton outside with Foam protection inside package. >2.Size:156CM*77CM*28CM >3.The pictures below are just a way of showing the packaging and do not represent the actual product.

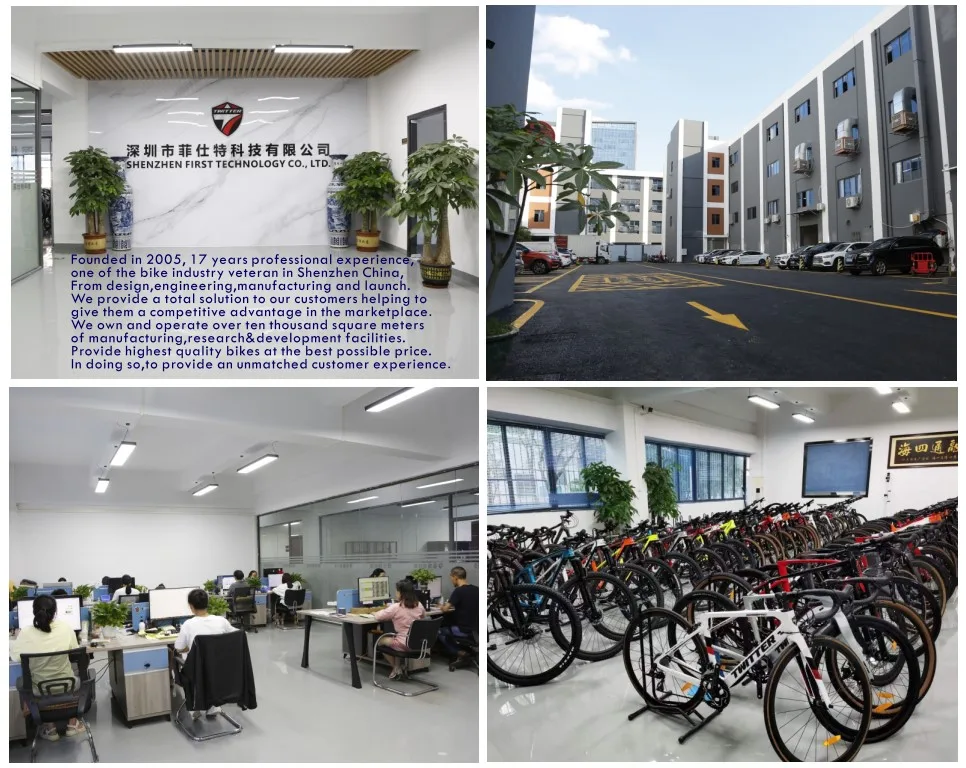

Company Profile
Customer Photos

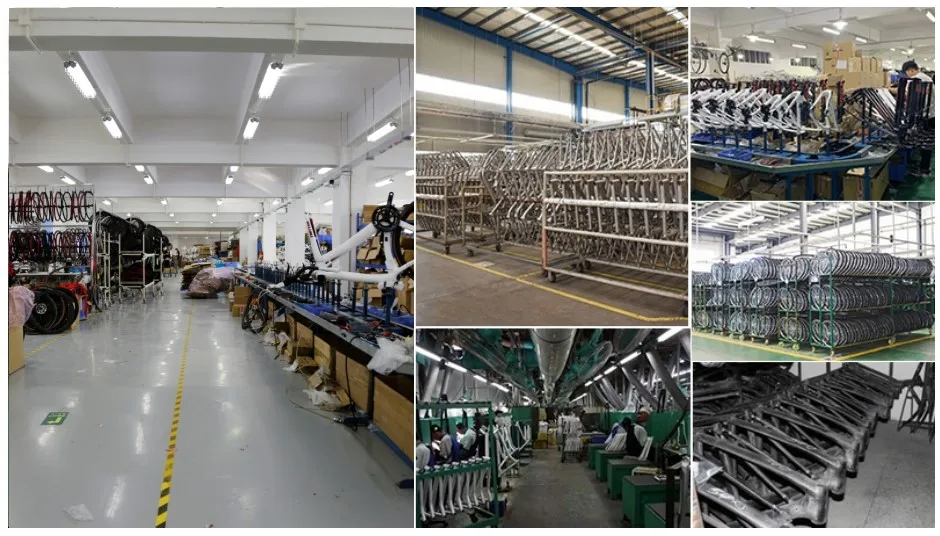

Our Services & Strength
>1.Bicycle frame made of high quality Carbon Fiber material.All carbon bikes used toray carbon T800/T900/T1000 material with crafted EPS technology. >2.We can offer very good quality with nice price.The parts which have high requirement about the size will be precisely machining, finally all the parts will be assembled by manual and inspected strictly in high standard requirement.
Certifications
Our Advantages
FAQ
>1. Q: Can I get some samples? A: We are honored to offer you sample for quality check. >2. Q: Can I mix different models? A: Yes,different models can be mixed . >3. Q: What payment do you accept? A: In general, our payment is trade assurance order for retail order and bulk order accept T/T ,Deposit and etc. >4.Q: If you want to know more about us psl contact me directly.^_^ whatsapp/wechat:+86 19832664352
